LUTONG 12 ton chinese road construction machinery road roller

FOB Reference Price:Get Latest Price
$34,000.00 - $40,000.00 / Unit | 1.0 Unit/Units (Min. Order)
Static Linear Pressure:
286N/cm
Model Number:
LTS212H
Engine:
diesel engine
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Vibratory Roller, road construction machine
Travel Speed:
0-10.2km/h
Grade Ability:
30%
Place of Origin:
Luoyang,China
Brand Name:
LUYANG
Power(W):
110000
Dimension(L*W*H):
5610x2280x3000 mm
Weight:
12TON
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, Online support
Hydraulic Pump Brand:
SAUER DANFOSS
Hydraulic Valve Brand:
SAUER DANFOSS
Engine Brand:
cummins
UNIQUE SELLING POINT:
hydraulic drive, double amplitude
Drum:
Single Drum Roller
Exciting Force:
260/160KN
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
Pressure vessel, Motor, pump, engine, Gearbox
product name:
road roller
Model:
LTS212H
Brand:
Luyang
Drive Type:
Hydraulic Transmission
Product Certification certification
CE Certified.
Valid from 2012-03-26 until 2049-12-31
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
one unit into 40HQ
Port
any Chinese port

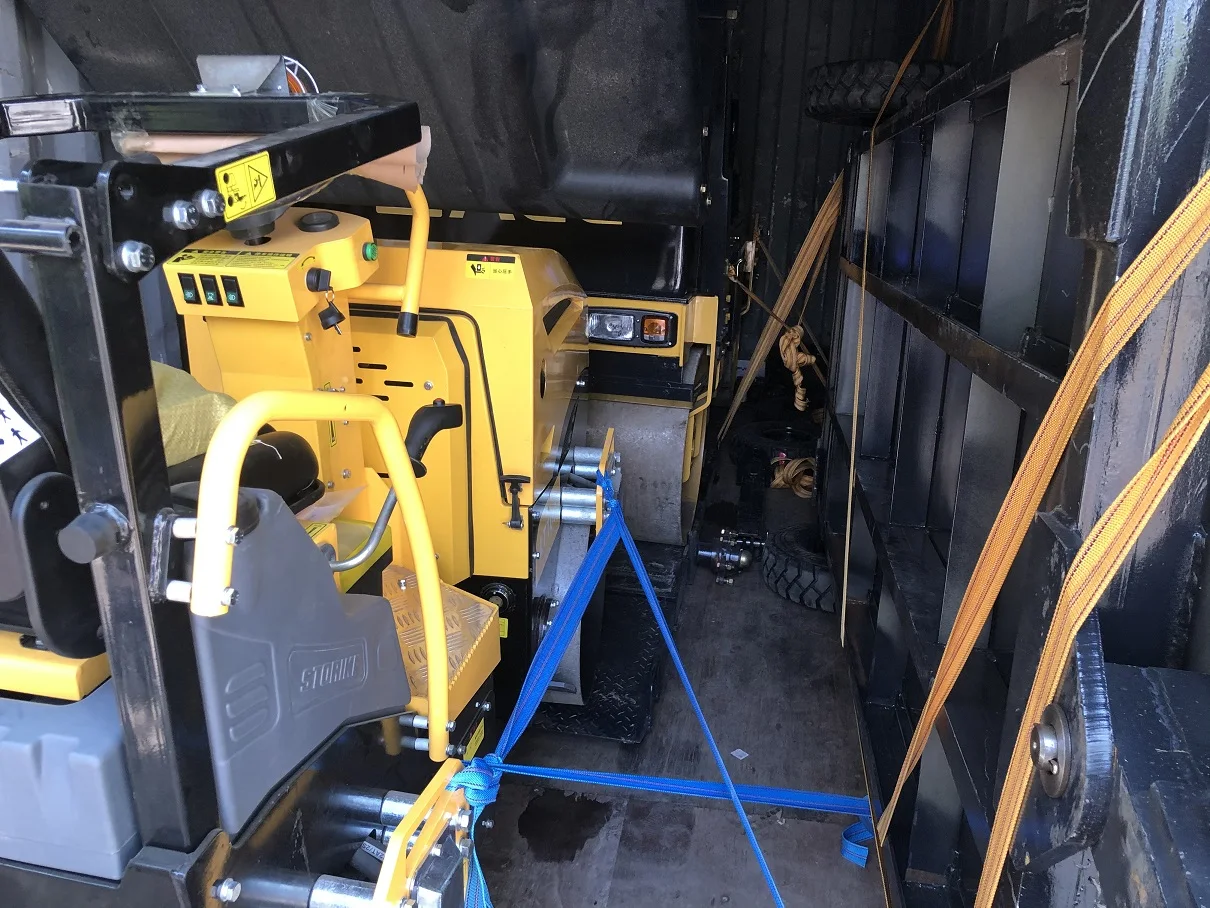

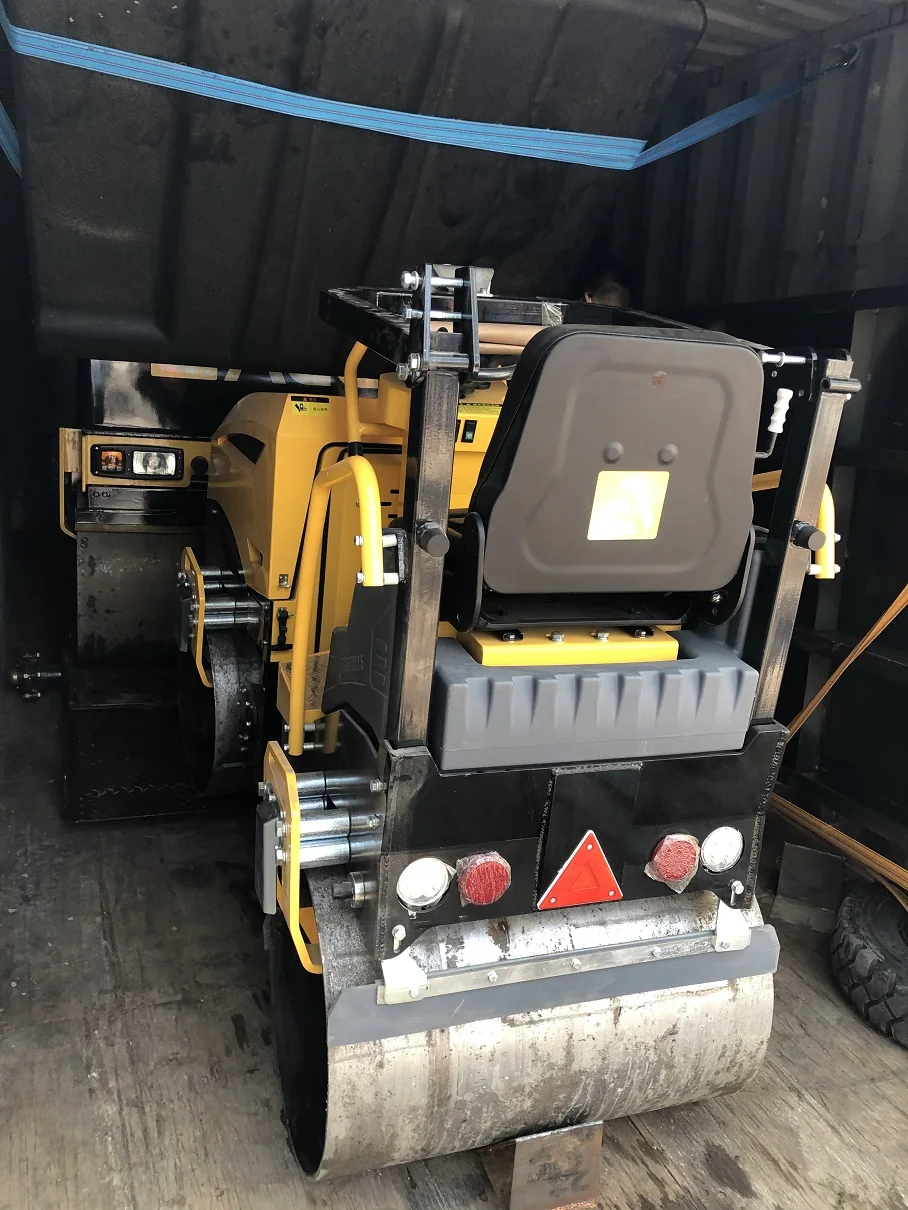

Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Product Description

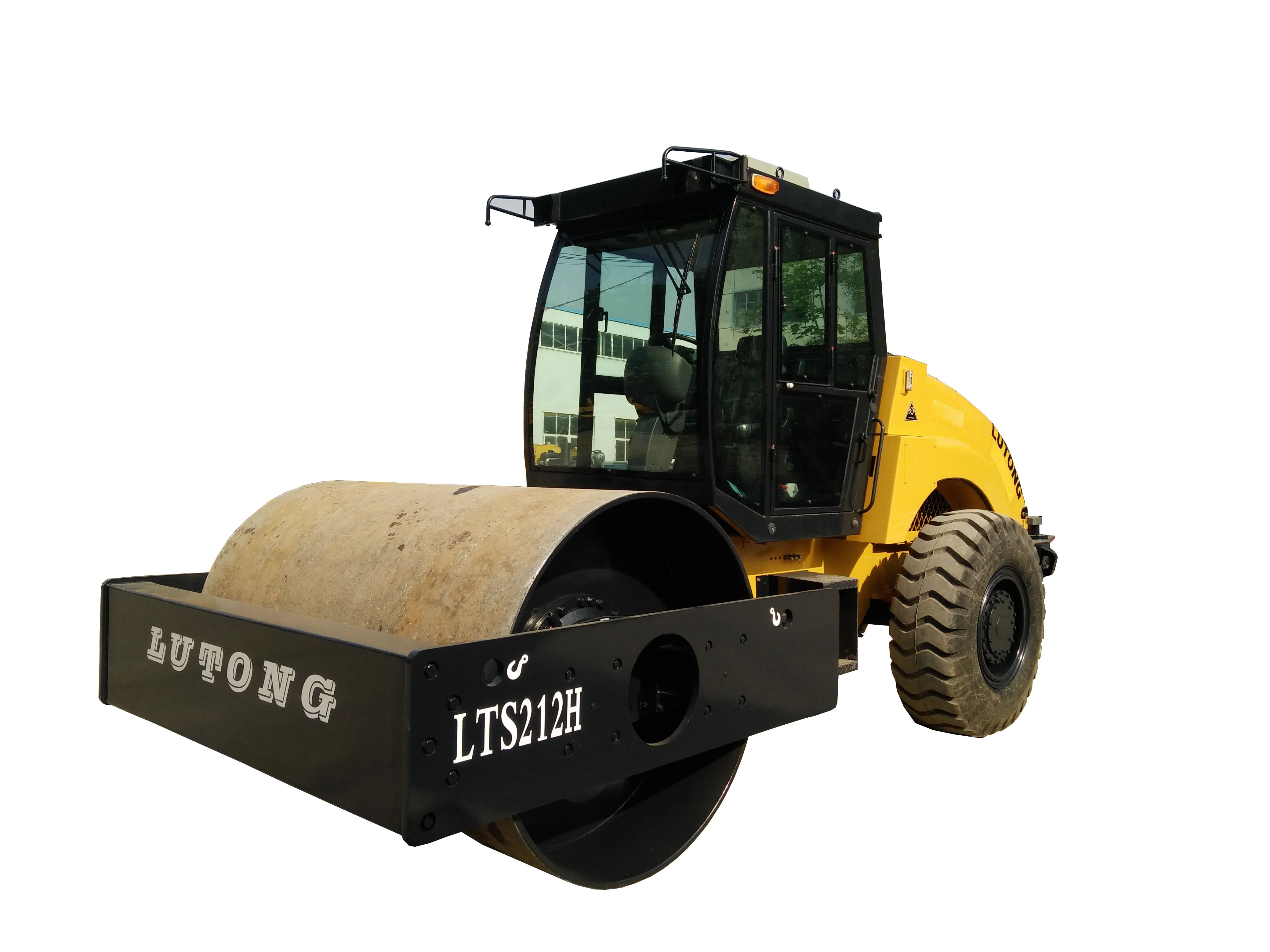

LTS212H Hydraulic rear driver vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port and industrial sites.
Main Features
1,Power System: CUMMINS turbocharged diesel engine, have high coefficient power reserve. Which comply with the operating condition above 4000 meters altitude. 2,Full hydraulic and rear drive, Hydraulic vibration,Hydraulic articulated steering,advanced technology,Blocking the oil supply to Brake the vehicle,safe and reliable. 3,Streamline outline, circular windshield glass and curvy hood form a unique style. 4,Equipped with padfoot or removal padfoot as option Hydraulic pump and vibrating motor are of the 90 series made by American manufacturer SAUER or German manufacturer REXROTH.

Main technical parameters
Operating mass
kg
12000
Statice linear load
N/cm
286
Vibration amplitude
mm
1.6/0.8
Centrifuel force
Kn
260/160
Vibration frequency
Hz
29/35
Travel apeed
Km/h
0-10.2
Electrial voltage
V
24
Tire size
17.5-25
Grade ability
%
30
Turning radius
mm
7000
Overall dimension (LxWxH)
mm
5610x2280x3000
Drum width
mm
2100
Wheel base
mm
3060
Diesel egnine power
Kw
110/2300rpm
Diesel egnine model
CUMMINS6BT5.9
Driving system
DANFOSS
Vibration system
PERMCO
Related products
Certifications
Packing&Shipping
Company Introduction
LUTONG Group, is located in Luoyang Airport Industrial Zone,covering an area of 200,000 square meter and owning fixed assets beyond RMB 200,000,000 Yuan. There are three subsidiaries of our LUTONG Group, Luoyang Lutong Heavy Industry Machinery Co,.LTD,Luoyang Lutong Agricultural Equipment Co., LTD, and Luoyang Lutong Trading Co., LTD.Currently,the company's main products include:0.8-30 tons series rollers,135-220 horsepower graders,30-200 horsepower tractors,which have been exported to more than 200 countries and regions,Such as Southeast Asia,Eurpoe,Africa and South America and so on.
Every year, many customers from oversea come to factory to talk about the cooperation and check the production. And have trained many workers for our foreign clients freely, and offered oversea after-sales serive as required for many times.
We take part in BAUMA exhibition at Shanghai every times and some abroad exhibition.Hope can meet you in our exhibition
FAQ
1.What our advantages compared with others?
Production advantage--- here is the factory ,roller from 0.8tons to 30tons, Model complete than others.
Competitive price--with more than 10years trading from numerous comparison and feedbacks from our customs ,our price is more competitive than others.Fast delivery-- Normally,we can have an immediate delivery of regular machines for our clients.
2.Is it convenient to see visit your factory and how go there?
welcome everyone to visit our factory,nearby luoyang airport,Also high speed train arrive our city. Make sure your trip date,we will arrange it for you.
3.What is the payment term?
Normally,we can work on T/T term or L/C term,sometimes on DP terms.On T/T term,30% down payment is required in advance,and 70% balance should be settled before shipment.On L/C term,a 100% irrevocable L/C without "soft clauses" can be accept.Please seek the advice from the individual sales manage whom you work with.
4.what about the warranty time?
12 months after shipment or 2000 working hours,whichever occuts first.
5.what about the minimum order quantity?
The MOQ is 1 Unit.
