Hydraulic double drum road rollers

  • >=1 Units
    $4,000.00
Static Linear Pressure:
286N/cm
Model Number:
LTC212
Engine:
diesel engine
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works , road machine
After Warranty Service:
Video technical support
Local Service Location:
none
Showroom Location:
none
Type:
Vibratory Roller
Travel Speed:
0~12km/h
Grade Ability:
Gradeability30%
Place of Origin:
Henan, China
Brand Name:
LuTong
Power(W):
110KW
Dimension(L*W*H):
5060x 2250x3300mm
Weight:
12 ton
Certification:
ISO CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts
Engine Brand:
cummins
UNIQUE SELLING POINT:
Fully hydraulic system
Drum:
Double Drum Roller
Exciting Force:
2x90KN
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
pump, engine, Gearbox
Drive Type:
hydraulic transmission
Vibration Type:
Hydraulic Double Drums Vibration
Color:
Customer Require
Starting mode:
Electric Starting
Part name:
Double Steel Drum Road Roller
Application:
Playground
Product Keywords:
double drum road roller
Brand:
lutong
Hydraulic oil tank:
75L
Water Tank capacity:
2x600L
Condition:
New
Product Certification certification
CE Certified.
Valid from 2012-03-26 until 2049-12-31
Supply Ability
Supply Ability:
300 Unit/Units per Month
Packaging & Delivery
Packaging Details
two units into 20GP and four units into 40HQ
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 25 To be negotiated
Why Choose Us


01 More than 60 road roller series

02 Guarantee steady parts supply
      no less than 10 years.

03 Core Patent technology holding,
      ISO and CE certification


Product Details
Model
LTC212
Operating mass
kg
12000
Static linear load
N/cm
286
Vibration amplitude
mm
0.8/0.4
Centrifugal force
KN
160x2/90x2
Vibration frequency
HZ
40/46
Travel speed
Km/h
0-12
Grade ability
%
30
Ground clearance
mm
324
Drum diameter
mm
1350
Drum width
mm
2100
Wheel base
mm
3717
Diesel model
cummins6BT5.9
Diesel power
Kw
110
Water tank capacity
L
2x600
Overall dimension
mm
5060*2250*3300

Cummins engine:

very safe and very good for use

Vibratory pump:

Using Danfoss pump

Environmental protection engine:

Engine model: changchai ZN390B

Operating button:

Function button, easy to operate.

Combination instrument:

By this easy to know the working condition of the road roller.

Related Products

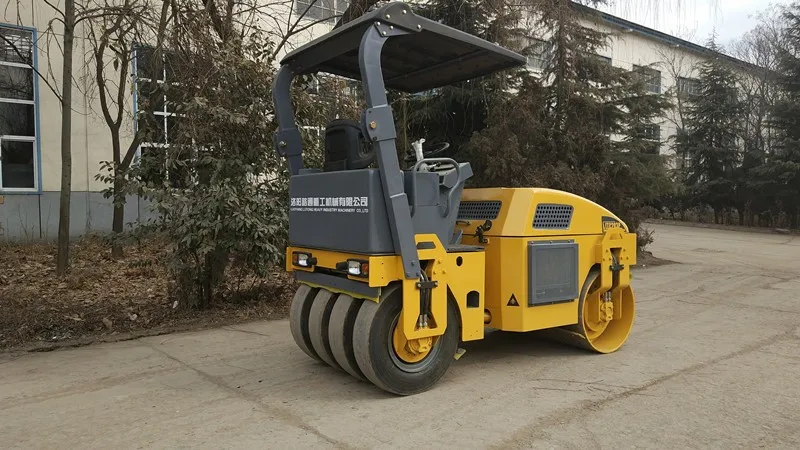

 LTC203P hydraulilc combined road roller
