motor grader provided by factory with high quality for sale

FOB Reference Price:Get Latest Price
$63,000.00 - $68,000.00 / Unit | 1 Unit/Units (Min. Order)
Weight:
16000kg
Model Number:
PY180C
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Graphic customization (Min. Order: 1 Units)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
road construction
Condition:
New
Forward Speed(km/h):
36
Reverse Speed(km/h):
25
Place of Origin:
Henan, China
Brand Name:
LUTONG
Dimension(L*W*H):
8605*2695*3420mm
Certification:
CE ISO
Warranty:
1 YEAR
Engine Brand:
cummins
Hydraulic System Pressure:
18Mpa
Diesel Power:
132kw
Diesel Model:
cummins 6BTA5.9
Blade Length*Height:
3965*610mm
Speed Gear Number:
Front6 /Rear3
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
01 unit can be packaged in 1*40 HQ container
Port
shanghai port
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 35 To be negotiated
Why Choose Us


01 More than 60 road roller series

02 Guarantee steady parts supply
      no less than 10 years.

03 Core Patent technology holding,
      ISO and CE certification


Product Details

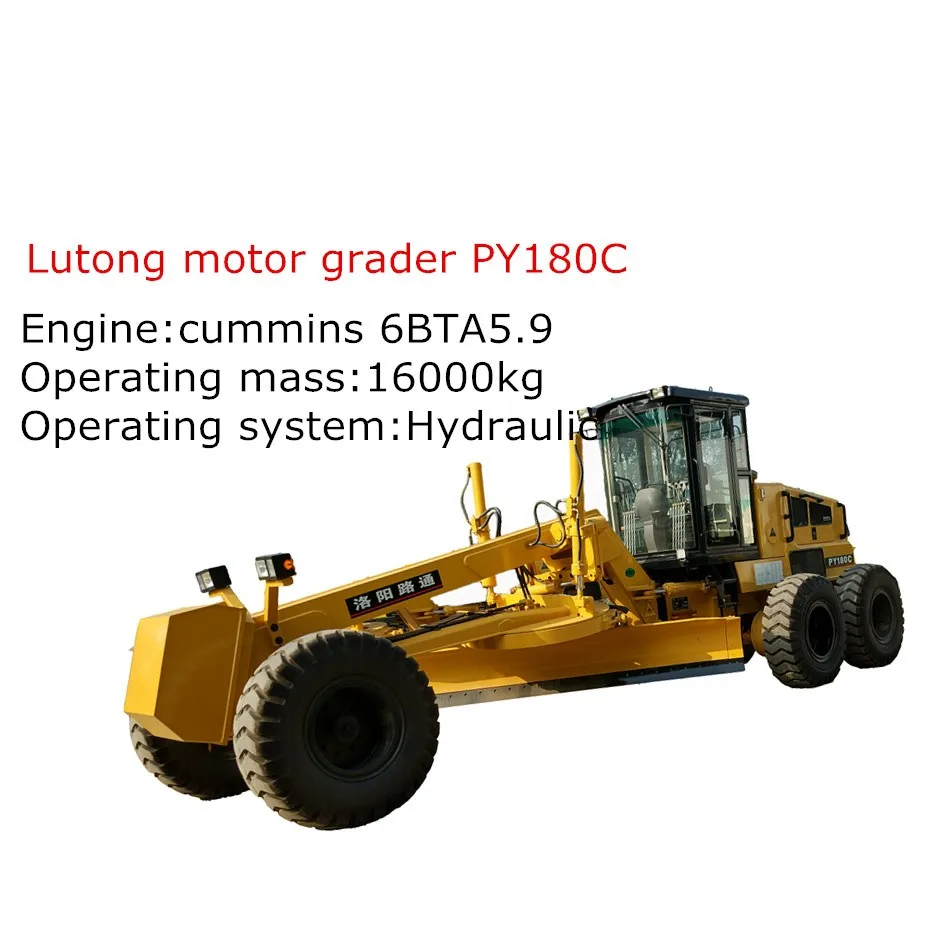

MOTOR GRADER

Hydraulic Drive

Self-Propelled

Articulated

Introduction

self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, slope scraping, bulldozing, ripping, virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi-functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.

Main Features
1,Power configuration is Cummins or shanghai Diesel Engine inler-cooling supercharged diesel engine with strong power and reliable performance.
2,Torque converter and power-shift gearbox introduced from GERMANY AF inc.are integrated together Six forward gears and three meet various requirements during machine's working and transporting.
3,Driving axle with integrated free-wheel anti-ship differential and strong roller chain drive tandem case,Boxed oscillated steering front axle with leaned wheels.
4,Popular working mechanism with pendulum-arm connecting rod structure, standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
5.Flexible hydraulic control system with two sets of HUSCO five way control valve, imported hydraulic equalizing valve for the blade lifting, patent hydraulically-operated pin drawing device is designed firstly in board.
6.Steering system with center articulated joint and tilting turning front wheels can get offset travel of the entire machine.
7.Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
8.Hydraulically operated with entire instrumental monitoring system.Free-maintenance.
9.It is optional for front bulldozing plate and rear ripper

MODEL
PY220C
PY180C
Operating mass
kg
16900
16000
Front axle load
kg
5820
5150
Rear  axle  load
kg
11080
0850
Max.forward  speed
km/h
36.8
36/38.2
Max.backward  speed
km/h
24.8
25/24.5
Speed  gear  number
F6/R3
F6/R3
Turning  radius
mm
7800
7800
Hydraulic system pressure
Mpa
18
18
Blade  lenght*height
mm
3965*610
3965*610
Front  wheeltrack
mm
2150
2150
Rear  wheeltrack
mm
2255
2255
Wheelbase
mm
5647
5647
Engine  model
QSC83
QSB5.9
Engine  power
kW
158
132
Overall dimensions
mm
8605*2695*3420
8605*2695*3420
Certificates
About Us

LUTONG Group, is located in Luoyang Airport Industrial Zone,covering an area of 200,000 square meter and owning fixed assets beyond RMB 200,000,000 Yuan. There are three subsidiaries of our LUTONG Group, Luoyang Lutong Heavy Industry Machinery Co,. LTD, Luoyang Lutong Agricultural Equipment Co., LTD, and Luoyang Lutong Trading Co., LTD.
Currently,the company's main products include:0.8-30 tons series rollers,135-220 horsepower graders,30-200 horsepower tractors,which have been exported to more than 200 countries and regions,Such as Southeast Asia,Eurpoe,Africa and South America and so on.

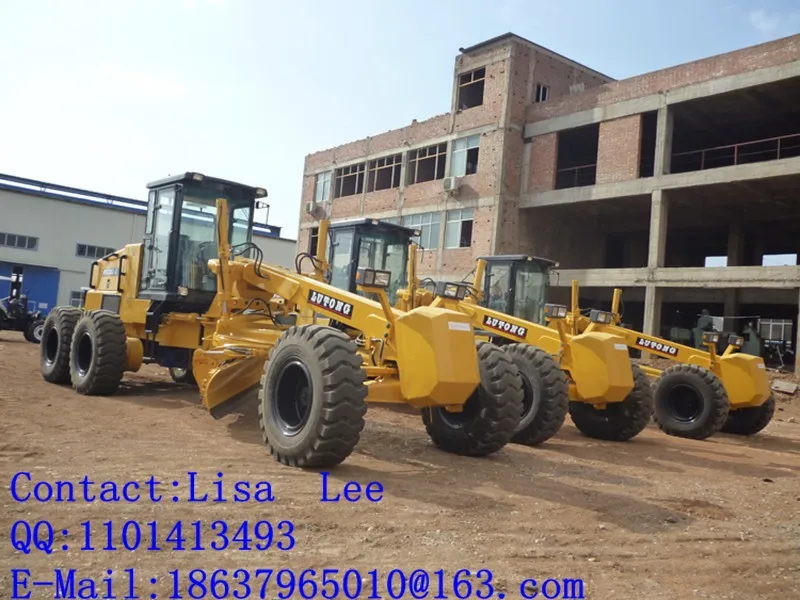

Customer Photo

Every year, many customers from oversea come to factory to talk about the cooperation and check the production. And have trained many workers for our foreign clients freely, and offered oversea after-sales serive as required for many times.

We take part in BAUMA exhibition at Shanghai every times and some abroad exhibition.Hope can meet you in our exhibition.

FAQ

1.What our advantages compared with others?
Production advantage--- here is the factory ,roller from 0.8tons to 30tons, Model complete than others.
Competitive price--with more than 10years trading from numerous comparison and feedbacks from our customs ,our price is more competitive than others.
Fast delivery-- Normally,we can have an immediate delivery of regular machines for our clients.

2.Is it convenient to see visit your factory and how go there?
welcome everyone to visit our factory,nearby luoyang airport,Also high speed train arrive our city. Make sure your trip date,we will arrange it for you.

3.What is the payment term?
Normally,we can work on T/T term or L/C term,sometimes on DP terms.
On T/T term,30% down payment is required in advance,and 70% balance should be settled before shipment.
On L/C term,a 100% irrevocable L/C without "soft clauses" can be accept.Please seek the advice from the individual sales manage whom you work with.

4.what about the warranty time?
12 months after shipment or 2000 working hours,whichever occuts first.

5.what about the minimum order quantity?
The MOQ is 1 PCS.
