90hp tractor machine agricultural farm equipment

FOB Reference Price:Get Latest Price
$12,900.00 - $13,000.00 / Unit | 1 Unit/Units (Min. Order)
Power(W):
66.2kw
Model Number:
LT904
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 300 >300
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Graphic customization (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
agricultual machine
After Warranty Service:
Spare parts
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Usage:
FARM TRACTOR
Drive Type:
gear drive
Certificate:
CE
Brand Name:
Lutong
Place of Origin:
Henan, China
Warranty:
1 YEAR
After-sales Service Provided:
Online support
Key Selling Points:
High Safety Level
Color:
Red
Drive type:
4*4
Wheelbase:
2195mm
Min.ground clearance:
379
Gearbox gears number:
16/8
Engine rated speed:
2200r/min
Max.traction force:
21.3KN
Front/Rear ballast:
270/470kg
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude Package : 02units packed in 1*40HQ container
Port
shanghai port
Lead Time :
Quantity(Units) 1 - 300 >300
Est. Time(days) 35 To be negotiated
Why Choose Us


01 More than 60 road roller series

02 Guarantee steady parts supply
      no less than 10 years.

03 Core Patent technology holding,
      ISO and CE certification


Product Description
LUTONG 904 4wd  wheel  farm  tractor  introduction
LUTONG80/1004 wheel-style tractors,which are more advanced than the same types of machines in China,which are developed by LuoYang LuTong Agricultural Equipment Limited

LT904  tractor  main   features
1,Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;

2, Double-function clutch, operate independently, high transmission capacity, effective and reliable,comfortable operation;

3 ,Gearbox using 4 * (4+2) engaging sleeve, shuttle-type gearshift , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency;

4 ,Independent power take off device, smooth transmission, large capacity;

5, Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;

6, Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;

7, Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;

8, Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;

9 ,New streamlined appearance, generous, modern, fashion;

The   Main  Technical  Parameters
Luoyang  Lutong  Agricutral  Equipment  904  Wheel  tractor
Model
LT904
DrIve  Type
4*4
Overall Dimension  (L*W*H)
mm
4320*2038*2810
Wheel  base
mm
2195
Front wheel  tread
mm
1610
Rear  wheel  tread
mm
1620-2020
Min.ground clearance
mm
379
Min.steering  radius
mm
4.2+0.3/4.9+0.3
Min.opearting  weight
mm
4090
Gearbox  gears  number
16F+8R
Speed  Forward /Reverse
Km/h
1.58-33.69/2.41-34.67
Engine  Model
LR4V5U22/0662E
Engine   Type
in line  ,water cooling,Natural  suction,electronic control unit pump
Engine  Rated power
KW
66.2
Engine  Rated  speed
r/min
2300
Front  Tires  spec
11.2-24
Rear   Tires spec
16.9-34
Steering  Type
Full   hydraulic  steering
Max.lifting  force
KN
15.9
PTO  Type
Rear-mounted   ,Independent  type
PTO  Speed
r/min
760/1000
PTO  Power
KW
56.3
Control  type of  ploughing depth
Height  control &  flotation control
Max.traction  force
KN
21.3
Ballast  Front /Rear
Kg
70/470

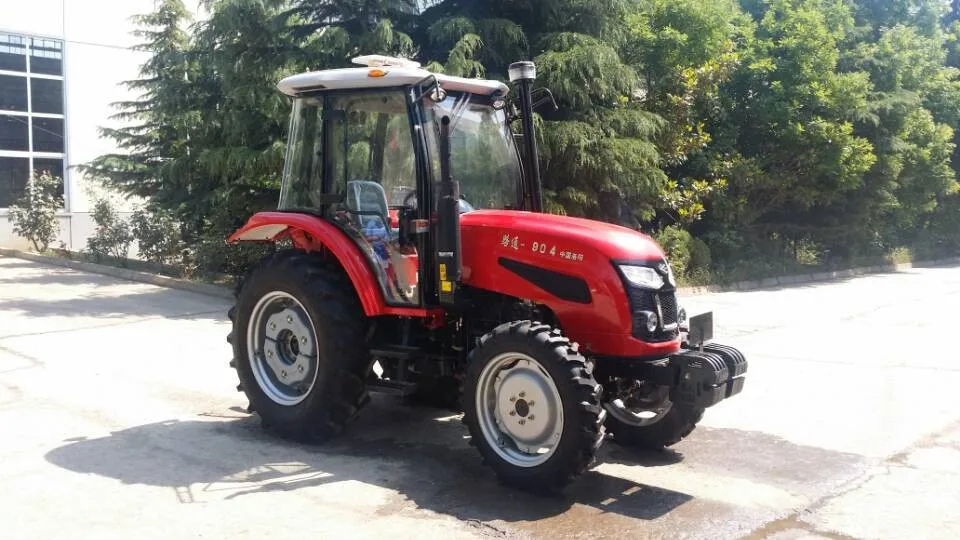

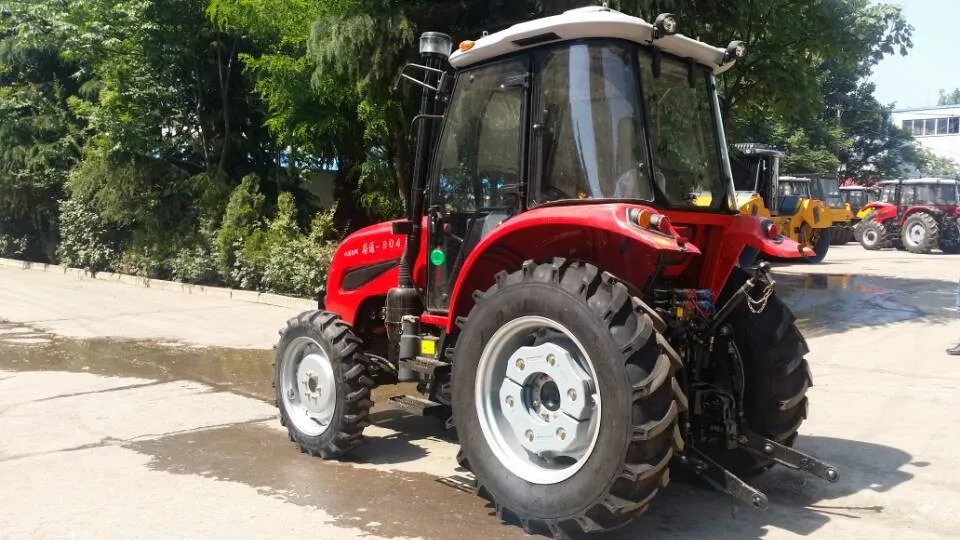

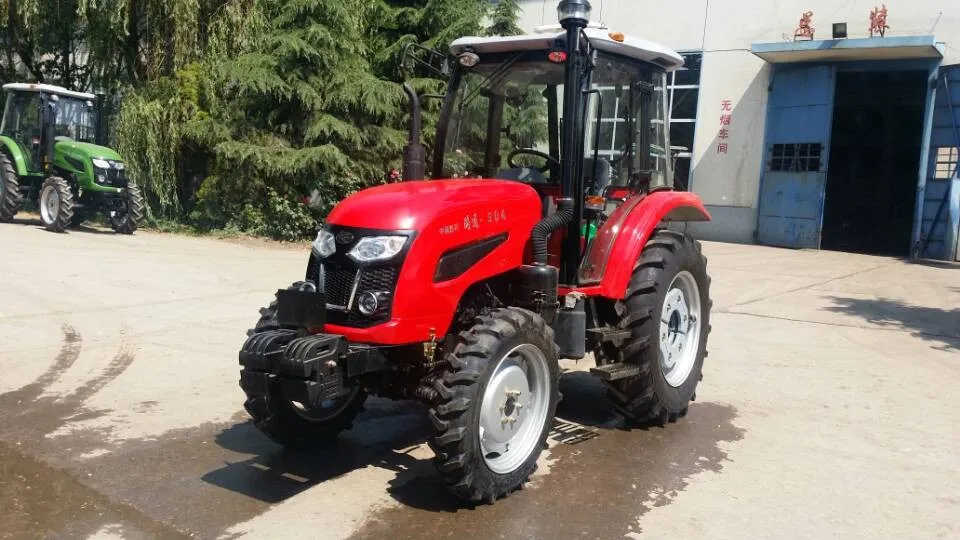

Detailed Images
Certificates
About Us

LUTONG Group, is located in Luoyang Airport Industrial Zone,covering an area of 200,000 square meter and owning fixed assets beyond RMB 200,000,000 Yuan. There are three subsidiaries of our LUTONG Group, Luoyang Lutong Heavy Industry Machinery Co,. LTD, Luoyang Lutong Agricultural Equipment Co., LTD, and Luoyang Lutong Trading Co., LTD.
Currently,the company's main products include:0.8-30 tons series rollers,135-220 horsepower graders,30-200 horsepower tractors,which have been exported to more than 200 countries and regions,Such as Southeast Asia,Eurpoe,Africa and South America and so on.

Customer Photo

Every year, many customers from oversea come to factory to talk about the cooperation and check the production. And have trained many workers for our foreign clients freely, and offered oversea after-sales serive as required for many times.

We take part in BAUMA exhibition at Shanghai every times and some abroad exhibition.Hope can meet you in our exhibition.

FAQ

1.What our advantages compared with others?
Production advantage--- here is the factory ,roller from 0.8tons to 30tons, Model complete than others.
Competitive price--with more than 10years trading from numerous comparison and feedbacks from our customs ,our price is more competitive than others.
Fast delivery-- Normally,we can have an immediate delivery of regular machines for our clients.

2.Is it convenient to see visit your factory and how go there?
welcome everyone to visit our factory,nearby luoyang airport,Also high speed train arrive our city. Make sure your trip date,we will arrange it for you.

3.What is the payment term?
Normally,we can work on T/T term or L/C term,sometimes on DP terms.
On T/T term,30% down payment is required in advance,and 70% balance should be settled before shipment.
On L/C term,a 100% irrevocable L/C without "soft clauses" can be accept.Please seek the advice from the individual sales manage whom you work with.

4.what about the warranty time?
12 months after shipment or 2000 working hours,whichever occuts first.

5.what about the minimum order quantity?
The MOQ is 1 PCS.
