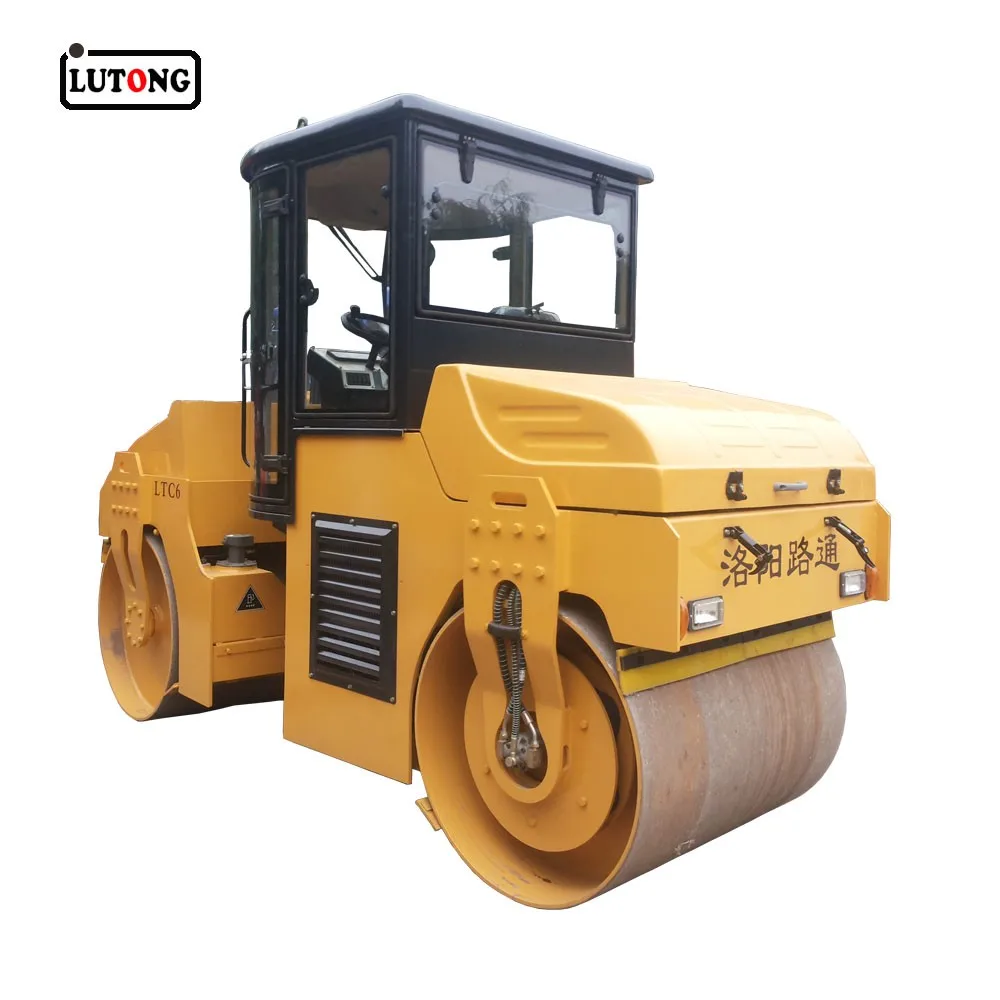

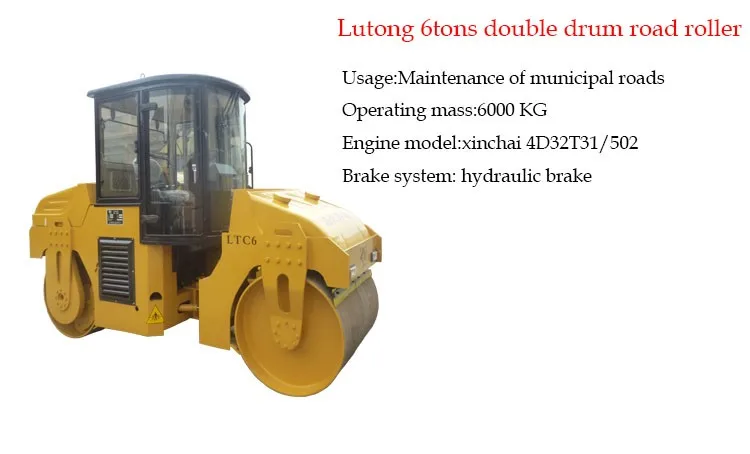

Lutong 6tons double drum road roller

  • >=1 Units
    $18,000.00
Static Linear Pressure:
232.4N/cm
Model Number:
LTC6
Engine:
diesel engine
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works
After Warranty Service:
Spare parts
Local Service Location:
none
Showroom Location:
none
Condition:
New
Type:
Vibratory Roller, Double Drum Roller
Travel Speed:
2.5-7.5km/h
Grade Ability:
Gradeability:30%
Place of Origin:
Henan, China
Brand Name:
LuTong
Power(W):
36.8KW
Dimension(L*W*H):
3690x1600x2700 mm
Weight:
6000kg
Certification:
ISO CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Engine Brand:
XINCHAI
UNIQUE SELLING POINT:
Low maintenance cost
Drum:
Double Drum Roller
Exciting Force:
55KN
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
pump, engine, Gearbox
engine:
xinchai4D32T31/504
engine power:
36.8KW
centrifugal force:
55 KN
Vibration frequency:
0.62mm
drum diameter:
950mm
drum width:
1320mm
water tank capacity:
435L
color:
yellow
Product Certification certification
CE Certified.
Valid from 2012-03-26 until 2049-12-31
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
one unit into 40HQ with remove the cabin
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Why  Choose  Us


01 More than 60 road roller series

02 Guarantee steady parts supply
      no less than 10 years.

03 Core Patent technology holding,
      ISO and CE certification


Product Details
Model
LTC6
Operating mass
kg
6000
Static linear load
N/cm
232.4
Vibration amplitude
mm
0.62
Centrifugal force
KN
55
Vibration frequency
KZ
46
Travel speed
Km/h
2.5/7.5
Grade ability
%
30
Drum diameter
mm
950
Roling width
mm
1320
Diesel model
xinchai 4D32T31/504
Diesel power
Kw
36.8
Water tank capacity
L
435
Overall dimension
mm
3690*1600*2700

Operating system:

Two control stick,easy to operate.

combination instrument:

With the conmbination instrument ,easy to check the conditions of the road roller

comfortable seat:

the seat can adjust ,very comfortable for drive.

Power switch:

Protect electrical source,avoiding leakage current.

cabin with fan:

This cabin can bring cooling in the summer.

Related Products

 LTC6 double drum tandem road rolle

 LTC6 double drum tandem road roller

 LTC6 double drum tandem road roller

About Us

LUTONG Group, is located in Luoyang Airport Industrial Zone,covering an area of 200,000 square meter and owning fixed assets beyond RMB 200,000,000 Yuan. There are three subsidiaries of our LUTONG Group, Luoyang Lutong Heavy Industry Machinery Co,. LTD, Luoyang Lutong Agricultural Equipment Co., LTD, and Luoyang Lutong Trading Co., LTD.
Currently,the company’s main products include:0.8-30 tons series rollers,135-220 horsepower graders,30-200 horsepower tractors,which have been exported to more than 200 countries and regions,Such as Southeast Asia,Eurpoe,Africa and South America and so on.

Customer Photo

Every year, many customers from oversea come to factory to talk about the cooperation and check the production. And have trained many workers for our foreign clients freely, and offered oversea after-sales serive as required for many times.

We take part in BAUMA exhibition at Shanghai every times and some abroad exhibition.Hope can meet you in our exhibition.

FAQ

1.What our advantages compared with others?
Production advantage--- here is the factory ,roller from 0.8tons to 30tons, Model complete than others.
Competitive price--with more than 10years trading from numerous comparison and feedbacks from our customs ,our price is more competitive than others.
Fast delivery-- Normally,we can have an immediate delivery of regular machines for our clients.

2.Is it convenient to see visit your factory and how go there?
welcome everyone to visit our factory,nearby luoyang airport,Also high speed train arrive our city. Make sure your trip date,we will arrange it for you.

3.What is the payment term?
Normally,we can work on T/T term or L/C term,sometimes on DP terms.
On T/T term,30% down payment is required in advance,and 70% balance should be settled before shipment.
On L/C term,a 100% irrevocable L/C without “soft clauses” can be accept.Please seek the advice from the individual sales manage whom you work with.

4.what about the warranty time?
12 months after shipment or 2000 working hours,whichever occuts first.

5.what about the minimum order quantity?
The MOQ is 1 PCS.
